Girbau Folder - FL Series

  • Model : FL Series
  • Voltage and base frequency : 380 ÷ 400 Volts / 50 Hertz
  • Supply section of compressed air : Ø 15x21
  • Compressed air operating pressure : 6 bars
  • Height : 1920mm liftings rings
  • Mass : 2300 kg
  • Weight/foot : 73 N/cm2 / 4 feet
  • Useful width : 3000 ÷ 4010 mm
  • Belt speed primary : 10 ÷ 50 m/min

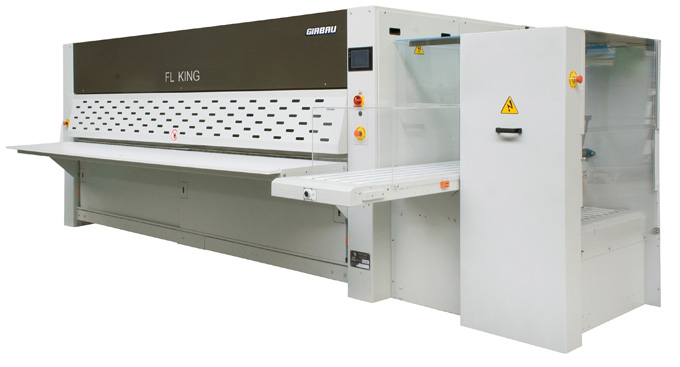

GIRBAU Air jet compact folder FL Series range

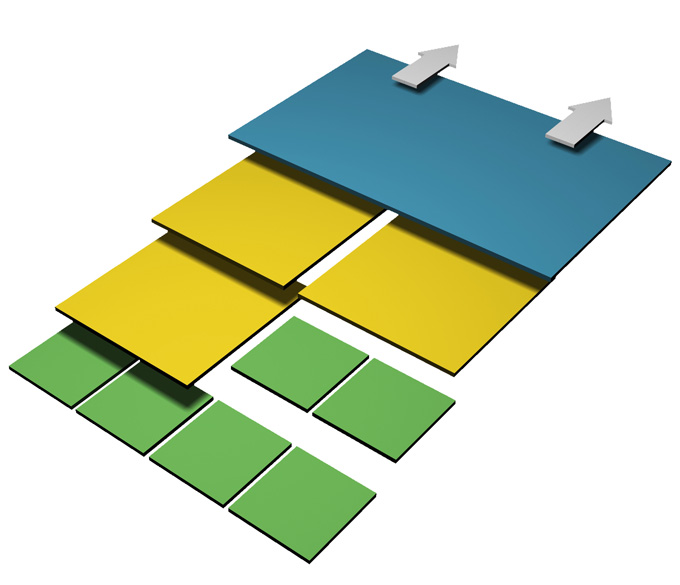

Suitable machine to carry out 1, 2 or 3 primary folds in 1 or 4 lanes and 1, 2 or 3 crossfolds in 1 lane (3rd crossfold on stacker).

Working width 3000, 3300 or 3500 mm depending on the ironer.
Full safety guards, interlocks and emergency stop buttons.
All measurements made by self-cleaning photocells.
AC frequency inverter drive with soft start and variable speed features.
Complete control of the folder through PLC.

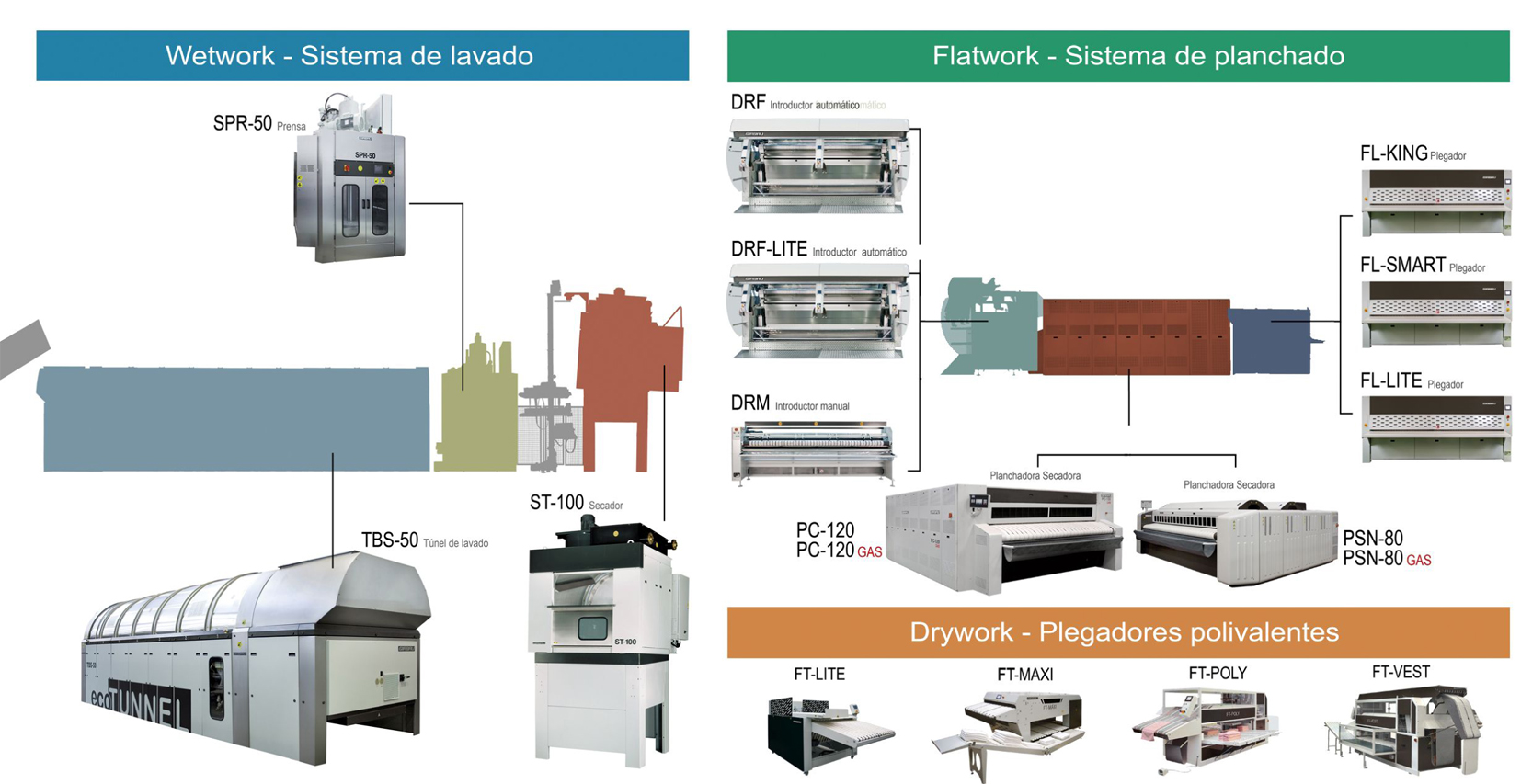

GIRBAU Ironing system


spare parts for this product
