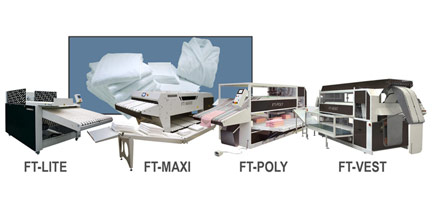

Girbau Folder - FT Series



  • Model : FT-LITE, FT-MAXI, FT-POLY, FT-VEST
  • Power : 400 Volts 3ph connection
  • Compressed air operating pressure : 6 ÷ 10 bars
  • Sound level at 1 metre : 75 dBA
  • Net weight : 950 ÷ 2500  kg
  • Height H : 1402 ÷ 2085 mm
  • Width L : 1590 ÷ 3875 mm
  • Depth D : 2950 ÷ 5244 mm

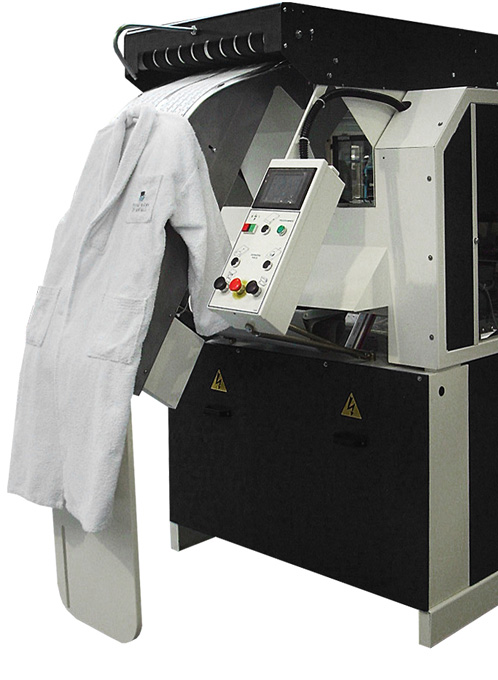

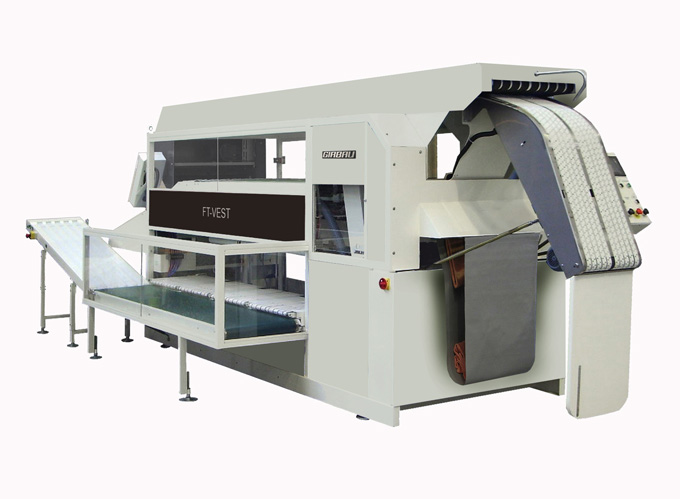

Polyvalent Towel & Form pieces Folder FT-VEST range

Two feeding tables with slight suction.
Folding table 1200 x 1500 mm.
Folding sizes: length 220 to 520 mm, width 180 to 410 mm.
Folding by flaps.
Sorting of items by 3 store conveyors of 1300 mm (3 to 6 piles) with levelling and pressing systems.
Stacker adjustable by quantity.
Torn and stain sorting device.
Fully safety guards.
Extra folding bridge (length above 1500 mm up to 1800 mm).

Polyvalent Towel & Form pieces Folder FT-POLY range

Feeding table with slight suction.
Folding table 1200 x 1500 mm.
Folding sizes: length 220 to 520 mm, width 180 to 410 mm.
Folding by flaps.
Sorting of items by 2,3 or 4 store conveyors of 1300 mm (3 to 6 piles) with levelling and pressing systems.
Stacker adjustable by quantity.
Torn and stain sorting device.
Fully safety guards.
Extra folding bridge (length above 1500 mm up to 1800 mm).

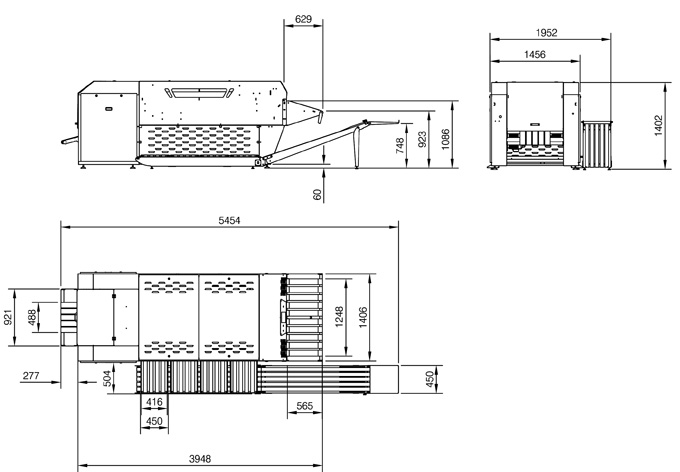

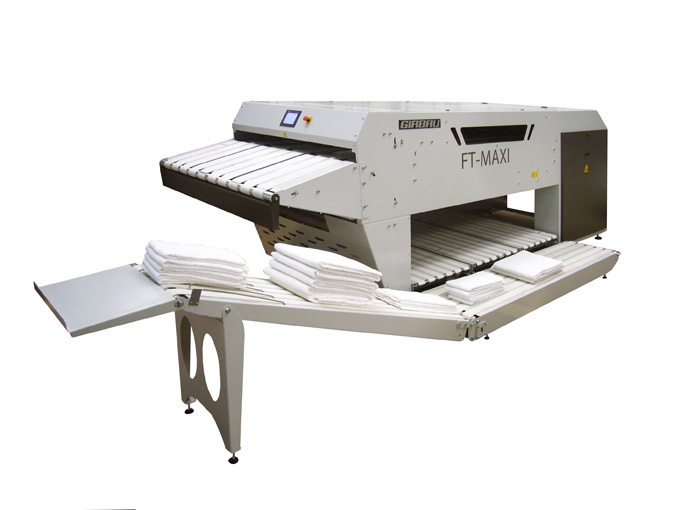

FT-MAXI Independent folder for articles of towelling or similar items

Production up to 1,200 articles per hour, depending on the item inserted, the method of folding and the skill of the operator.

Features:
- Manual feeding on feeder table with two lengthwise folds and one or two cross-folds, and stacked on three independent conveyors.

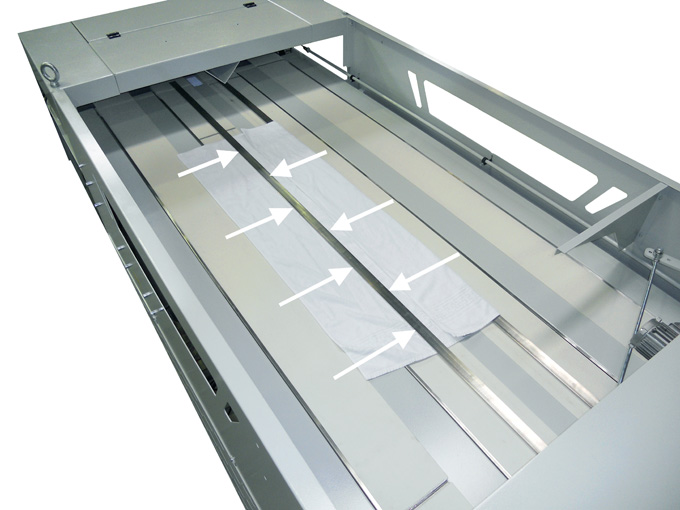

- Primary folding using an air jet, and cross-folding using a reversing system.
- New easy maintenance folding table.
- Capacity for articles of linen up to 2350 x 1200 mm.

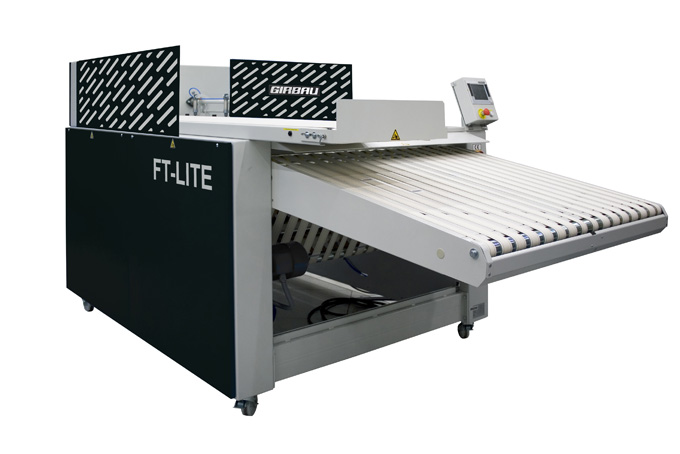

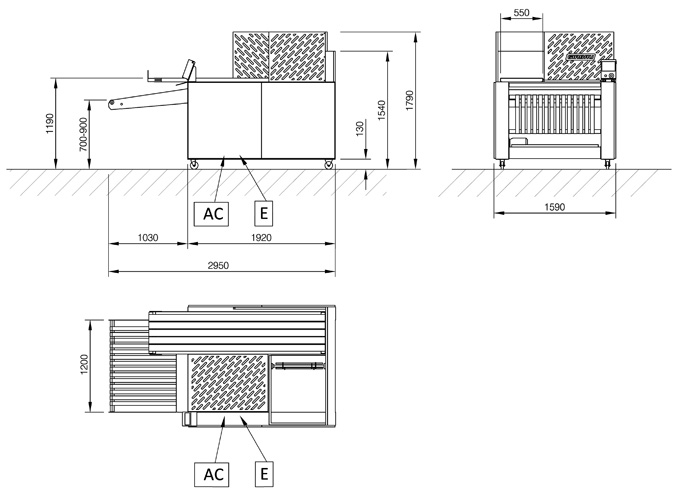

FT-LITE Folder for towelling items, airline blankets and similar articles

Production of up to 1,000 articles/hour, depending on the type of item inserted, the folding method and the skill of the operator.

Features.
- Capacity for articles of linen up to 1200 x 2400 mm.

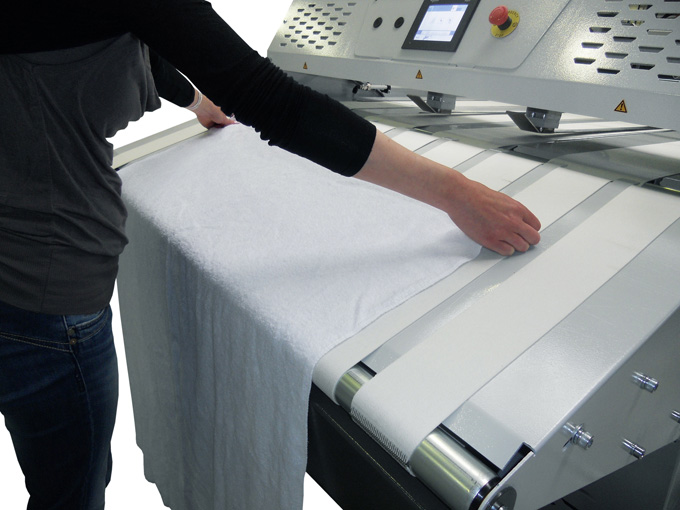

- Manual feeding on the feeder table.
- 1, 2 or 3 lengthwise folds and 1 cross-fold.
- Lengthwise fold in half or French-type fold.
- Single stacking on conveyor.
- Includes a top conveyor for ejection and returning to the feeding position.
