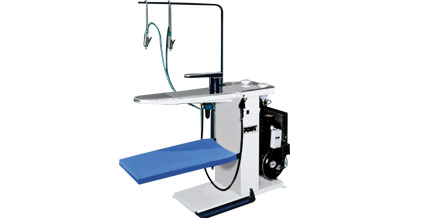

Pony Spotting Table Jolly



  • Air working pressure : 7 - 8 bar
  • Steam working pressure : 4 - 6 bar
  • Net weight : 60 kg
  • Gross weight : 80 kg
  • Encumbrance : 1440 x 700 mm
  • Overall dimension : 1380 x 580 x 1070 mm
  • Volume : 0.85 m³

Spotting table with stainless steel board Mod. Jolly


Cold Spotting table composed by a main board and sleeves spotting arm both stainless steel


It is equipped with:
  Two spotting guns with tank for liquid spotting agents
  One drying air gun

Available extras :
Electric vacuum unit foot starter
Steam spotting gun
Compressor


TECHNICAL DATA:
Required power:  220V/380V/1 or 3/50 Hz
Steam inlet:  3/8
Return outlet:  1/2
Steam working pressure:  4 ÷ 6 bar
Steam consumption:  3 ÷ 5 Kg/h
Air inlet:  1/4
Air working pressure:  7 ÷ 8 bar
Air consumption:  150 ÷ 220NI /min.
Vacuum motor:  0.25 Kw
Vacuum outlet:  Ø 100 mm
Compressor motor:  2.2 kW
Board dimensions:  750 x 270 x 160 mm
Arm dimensions:  400 x 100 x 65 mm
Encumbrance:  1440 x 700 mm
Net weight:  60 kg
Gross weight:  80 kg
Overall dimensions:  1380 x 580 x 1070 mm
Volume:  0.85 m3
