Pony Spotting Table Jolly S



  • Air working pressure : 7 - 8 bar
  • Steam working pressure : 4 - 6 bar
  • Net weight : 60 kg
  • Gross weight : 80 kg
  • Encumbrance : 1400 x 500 mm
  • Overall dimension : 1380 x 580 x 1070 mm
  • Volume : 0.85 m³

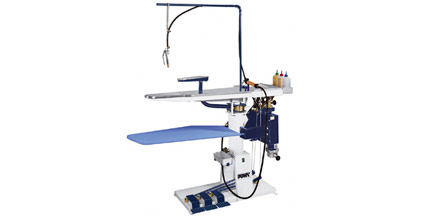

Stainless steel Spotting table Mod. JOLLY-S

Professional steam Spotting Table ready for connection to central steam, vacuum and air supplies.
By pushing a pedal with a different pressure, gun releases three different type of steam: dry steam, moist steam and wet steam.
Compressed air is heated at an average temperature in order to fasten the drying process and avoid moisture and rings also on large areas of perspiration< br>
The main board and the swinging sleeve board are stainless steel

Available extras :
Built-in suction fan
Water spray gun
Cold spotting gun with accessories.


TECHNICAL DATA:
Required power:  230/400 V.3/50 Hz
Steam inlet:  1/2
Return outlet:  1/2
Steam working pressure:  4 ÷ 6 bar
Steam consumption:  6 ÷ 8 Kg /h
Air inlet:  1/4
Air working pressure:  7 ÷ 8 bar
Air consumption:  150 ÷ 200 NI /mm
Vacuum motor:  0.25 Kw
Vacuum outlet:  ø 100 mm
Central vacuum connect.:  ø 70 mm
Vacuum depression:  140 mm H²o
Vacuum air consumption:  300 m³/h
Board dimensions:  900 x 300 x 160 mm
Arm dimensions:  400 x 100 x 65 mm
Encumbrance:  1530 x 520 x 910 mm
Net weight:  65 kg
Gross weight:  85 kg
Overall dimensions:  1380 x 580 x 1070 mm
Volume:  0.85 m3
