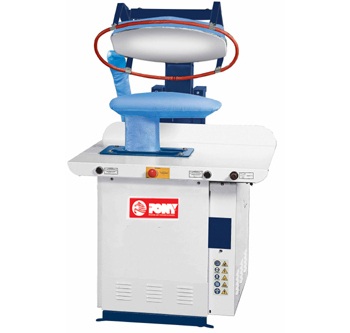

Pneumatic Press Mod. LAV-F, mushroom shape with high grade nickel plated head

  • Required power: 230V/1 or 400V/3 + N50 Hz
  • Air working pressure: 7 bar
  • Boiler drain: 1/2"
  • Steam consumption: 12÷14 Kg/h
  • Encumbrance:  1250x1050 mm
  • Net weight: 245 Kg
  • Gross weight: 275 Kg
  • Overall dimensions: 1400x1150x1400 mm

Pneumatic Press Mod. LAV-F, mushroom shape with high grade nickel plated head.

Bottom buck with pad and cover, both Steam heated (not steaming, just heated).

Head closing by two buttons, or two buttons + head safety guard.

Available either for connection to external steam and air supply or self-contained.

Available extras:

  • Builtin 7 lts. electronic boiler 78910 KW
  • Builtin 20 lts. electronic boiler 10 or 12 KW.
  • Water spray gun.
  • Adjustable head release timer.
  • Steam electric iron assembly GFV with swinging iron support.



TECHNICAL DATA

  • Required power: 230V/1 or 400V/3 + N50 Hz
  • Boilers heating: 6÷8÷10 (7lt) or 10÷12÷15÷18 (20lt) Kw
  • Pump motor: 0,6 Kw
  • Compressor motor: 0,75 Kw
  • Water feeding: ø 13 mm
  • Boiler drain: 1/2"
  • Steam inlet: 1/2"
  • Return outlet: 1/2"
  • Steam working pressure: 5÷8 bar
  • Steam consumption: 12÷14 Kg/h
  • Air inlet: 3/8"
  • Air working pressure: 7 bar
  • Air consumption: 8 NL per cycle
  • Encumbrance: 1250 x 1050 mm
  • Net weight: 245 Kg
  • Gross weight: 275 Kg
  • Overall dimensions: 1400 x 1150 x 1400 mm
