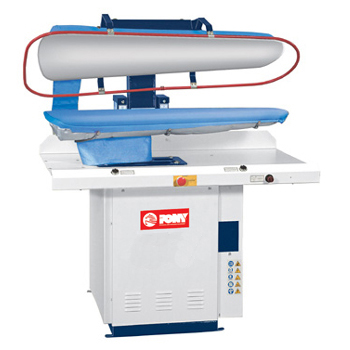

Pneumatic Press Mod. LAV-U, utility shape with high grade nickel plated head

  • Required power: 230/1 or 400 V/3 + N50 Hz
  • Vacuum motor: N/A
  • Air working pressure: 7 bar
  • Boiler drain: 1/2"
  • Steam consumption: 12÷14 Kg/h
  • Encumbrance: 1250 x 1050 mm
  • Net weight: 295 Kg
  • Gross weight: 325 Kg
  • Overall dimensions: 1400x1150x1400 mm

Pneumatic press for LAUNDRY with high grade nickel plated polished head.

Bottom buck with pad and cover, both Steam heated (not steaming, just heated).

Head closing by two buttons, or two buttons + head safety guard.

Available either for connection to external steam and air supply or self-contained.

Available extras:

  • Builtin 7 lts. electronic boiler 78910 KW
  • Builtin 20 lts. electronic boiler 10 or 12 KW.
  • Water spray gun.
  • Adjustable head release timer.
  • Steam electric iron assembly GFV with swinging iron support.



TECHNICAL DATA

  • Required power: 230V/1 or 400V/3 + N50 Hz
  • Boilers heating: 6÷8÷10 Kw (7lt) / 10÷12÷15÷18 Kw (20lt)
  • Pump motor: 0,6 Kw
  • Vacuum motor: N/A
  • Compressor motor: 0.75 Kw
  • Water feeding: ø 13 mm
  • Boiler drain: 1/2"
  • Steam inlet: 1/2"
  • Return outlet: 1/2"
  • Steam working pressure: 5÷8 bar
  • Steam consumption: 12÷14 Kg/h
  • Air inlet: 3/8”
  • Air working pressure: 7 bar
  • Air consumption: 8 NL per cycle
  • Encumbrance: 1250 x 1050 mm
  • Net weight: 295 Kg
  • Gross weight: 325 Kg
  • Overall dimensions: 1400 x 1150 x 1400 mm
