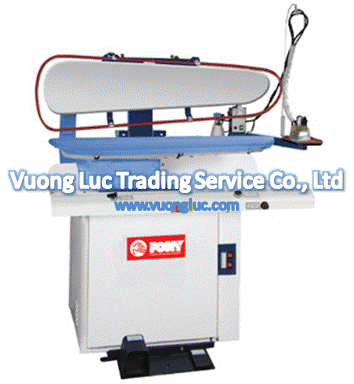

Air operated press Mod. BRAVA BP-UL, utility laundry shape with polished head.

  • Required power: 230/400V/1 or 3/50 Hz
  • Vacuum motor: 0.37 Kw
  • Vacuum outlet: Ø 100 mm
  • Boiler heating: 10÷12÷15÷18 Kw
  • Air working pressure: 7 bar
  • Encumbrance: 1250 x 1150 mm
  • Net weight : 330 Kg
  • Gross weight: 360 Kg
  • Overall dimensions: 1400x1150x1400 mm

Air operated press, utility laundry shape with good performances and moderate price.

Stainless steel polished head, steam heated NOT STEAMING, padded buck with live steam and vacuum.

Available either for connection to external steam, vacuum and air supplies or self-contained.

Available extras:

  • Built-in boiler
  • Built-in vacuum
  • Built-in compressor
  • Timer to control the different finishing stages
  • GFV iron group
  • Sleeve spotting arm



TECHNICAL DATA

  • Required power: 230/400V/1 or 3/50 Hz
  • Water feeding: hosepipe Ø 13 mm
  • Steam inlet: 1/2"
  • Return outlet: 1/2"
  • Air inlet: 3/8
  • Steam working pressure: 5 bar
  • Air working pressure: 7 bar
  • Steam consumption: 16÷20 Kg/h
  • Air consumption: 10 NL/MIN
  • Central vacuum connect.: Ø 48 mm
  • Vacuum depression: 200 mm H²O
  • Vacuum air consumption: 360 m³/h
  • Boiler drain: 1/2"
  • Vacuum outlet: Ø 100 mm
  • Boiler heating: 10÷12÷15÷18 Kw
  • Iron heating element: 0,8 Kw
  • Vacuum motor: 0.37 Kw
  • Pump motor: 0.6 Kw
  • Compressor motor: 0.75 Kw
  • Encumbrance: 1250 x 1150 mm
  • Net weight : 330 Kg
  • Gross weight: 360 Kg
  • Overall dimensions: 1400 x 1150 x 1400 mm
