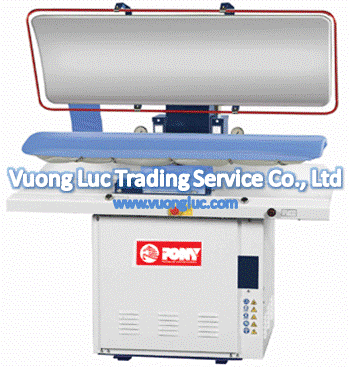

Pneumatic Presse Mod. LAV-R1, rectangular shape with high grade nickel plated head.

  • Required power: 230V/1 or 400/3+N/50 Hz
  • Vacuum motor: 0,6 Kw (R1/E - R2)
  • Air working pressure: 7 bar
  • Boiler drain: 1/2"
  • Steam consumption: 16÷18 Kg/h
  • Encumbrance: 1500 x 1150 mm
  • Net weight : 400 Kg
  • Gross weight : 435 Kg
  • Overall dimensions: 1670 x 1230 x 1450 mm

Pneumatic presse for LAUNDRY with high grade nickel plated polished head.

Bottom buck with pad and cover, both Steam heated, (not steaming, just heated).

Head closing by two buttons, or two buttons + head safety guard.

Available either for connection to external steam and air supply or self-contained.

Available extras:

  • Built-in 7 lts. electronic boiler- 7-8-9-10 Kw (R1/E)
  • Built-in 20 lts. electronic boiler -10 or 12 Kw (R1/V)
  • Water spray gun
  • Adjustable head release timer
  • Steam electric iron assembly GFV with swinging iron support



TECHNICAL DATA

  • Required power: 230V/1 or 400/3+N/50 Hz
  • 7or 20lt boilers heating: 6÷8÷10 (7lt)
    or 10÷12÷15÷18 (20 lt) Kw
  • Pump motor: 0,6 Kw
  • Vacuum motor: 0,6 Kw (R1/E - R2)
  • Compressor motor: 2,2 Kw
  • Water feeding: hosepipe ø 13 mm
  • Boiler drain: 1/2"
  • Steam inlet: 1/2"
  • Return outlet: 1/2"
  • Steam working pressure: 5÷8 bar
  • Steam consumption: 16÷18 Kg/h
  • Air inlet: 3/8
  • Air working pressure: 7 bar
  • Air consumption: 31 NL per cycle
  • Encumbrance: 1500 x 1150 mm
  • Net weight : 400 Kg
  • Gross weight : 435 Kg
  • Overall dimensions: 1670x1230x1450 mm
