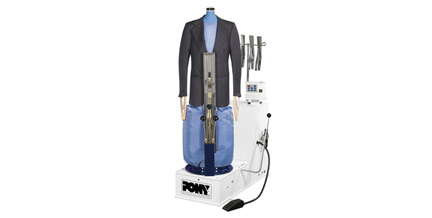

Pony Universal Form Finisher MG PNEUMATIC

  • Required power:  400 V./3 + N/50 Hz
  • Fan motor:  1HP
  • Steam working pressure:  4 ÷ 6 bar
  • Air working pressure:  6 ÷ 7 bar
  • Encumbrance:  650 X 980 mm
  • Net weight:  75 kg
  • Gross weight:  95 kg
  • Overall dimensions:  1480 x 830 x 950 mm

Universal form finisher Mod. MG PNEUMATIC for outerwear garment - to be connected with external steam supply.

Universal form finisher for the blowing finishing of all outerwer garments, suitable for laundry , dry-cleaning, manufacturing, pressing and hotel industries.

Finishing cycles controlled by micro-processor

Pneumatic steam control
Revolving dummy allows to intervene on the garment even during finishing cycles.

Available extras :
Steam Iron Group
Steam gun
Water spray gun
Special dummies.

It is also available with a stainless steel body.


TECHNICAL DATA:
Required power:  400 V./3 + N/50 Hz
Fan motor:  1HP
Steam inlet:  1/2
Return outlet:  1/2
Steam working pressure:  4 ÷ 6 bar
Steam consumption:  10 ÷ 15 kg/h
Air inlet:  1/4
Air working pressure:  6 ÷ 7 bar
Encumbrance:  650 X 980 mm
Net weight:  75 kg
Gross weight:  95 kg
Overall dimensions:  1480 x 830 x 950 mm
